Winchester 1885 Parts

Click here for an extensive selection of parts for the Winchester Model 1885. www.chasjonesgunparts.com, an independent company. Orders placed at this website are not filled by the same company.

Model 1885 Single Shot Rifle

"In outline everything has been done to make the gun pleasing to the eye." - Winchester catalog, 1885

Originally manufactured to appeal to hunters and plainsmen needing powerful and accurate single shot rifles; picture your 1885 in the hands of a buckskin-clad fellow with a coonskin cap taking aim at a buffalo in the distance, and you get the picture.

This was the first single shot rifle made by Winchester. About 139,725 had been made when Winchester discontinued the 1885 in 1920. Various styles, weights, and lengths of forearms were made for this rifle; please have all information on your rifle available when ordering.

Please note that these stocks will not work on current or recent manufacture rifles, including the new Uberti. We do not manufacture any custom stocks, nor stocks with cheekpieces, thumbholes, nor Scheutzen-style stocks for the 1885.

Winchester 1885 High Wall Straight Grip/Crescent Style Buttstock

Larger picture

NOT AVAILABLE AT THIS TIME

Winchester 1885 High Wall Straight Grip/Shotgun-Style Buttstock

Larger picture

Winchester 1885 High Wall Carbine Buttstock

Larger picture

Winchester 1885 High Wall Octagon Barrel Forearm

View from below

EBONY INLAY NOT AVAILABLE AT THIS TIME

Schnable tip style, we include ebony block for installation by customer or gunsmith. We offer High Wall octagon barrel forearms for #3 and #4 barrels only. The #3 barrel channel measures approximately 1.025" wide at the receiver and .975" wide at the forearm tip. The #4 barrel channel is approximately 1.125" wide at the receiver and 1.095" wide at the forearm tip. Please measure carefully to determine your barrel size.

Winchester 1885 High Wall Round Barrel Forearm

View from below

EBONY INLAY NOT AVAILABLE AT THIS TIME

Schnable tip style, we include ebony block for installation by customer or gunsmith. We offer High Wall round barrel forearms for #1 and #2 barrels only. The #1 barrel channel measures approximately 1.030" wide at the receiver and .820" wide at the forearm tip. The #2 barrel channel is approximately .985" wide at the receiver and .880" wide at the forearm tip. Please measure carefully to determine your barrel size.

Winchester 1885 Low Wall Straight Grip/Crescent Style Buttstock

Larger picture

Winchester 1885 Low Wall Octagon Barrel Forearm

View from below

#1 BARREL SIZE AND EBONY INLAY NOT AVAILABLE AT THIS TIME

Schnable tip style, we include ebony block for installation by customer or gunsmith. We offer Low Wall octagon barrel forearms for #1 and #2 barrels only. The #1 barrel channel measures approximately .995" wide at the receiver and .840" wide at the forearm tip. The #2 barrel channel is approximately 1.150" wide at the receiver and .990" wide at the forearm tip. Please measure carefully to determine your barrel size.

Winchester Late 1885 and Low Wall Rifle Buttplate

Larger picture

NOT AVAILABLE AT THIS TIME

Polished, drilled, and blued by hand in our shop, cast from a custom mold exclusively for PGW.

Winchester 1885 Shotgun Style Buttplate

Larger picture

Black plastic reproduced buttplate, checkered, with Winchester logo. To order buttplate screws, see below.

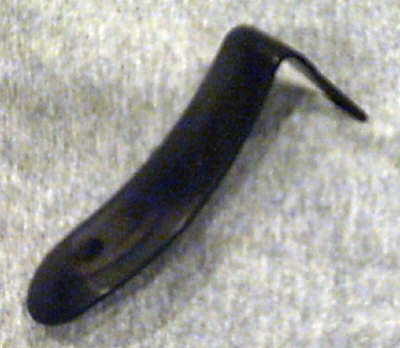

Winchester 1885 Carbine Buttplate

Larger picture

NOT AVAILABLE AT THIS TIME

Blued steel, with screw holes drilled. Does not contain trapdoor.

Winchester Buttplate Screws

A pair of blued screws of the proper size and configuration for Winchester rifle buttplates.
